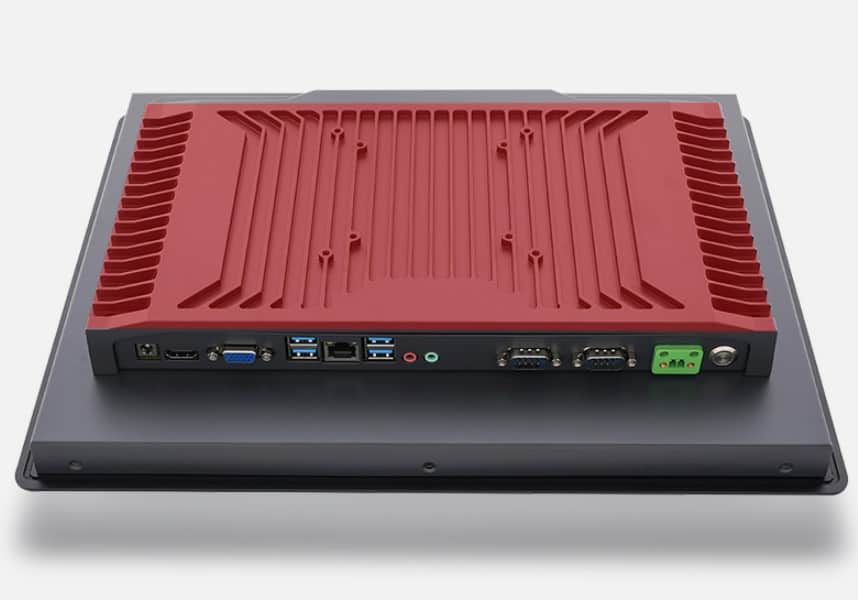

This openframe design touch panel pc support Embedded, wall mounting, desk top and other installation is available.

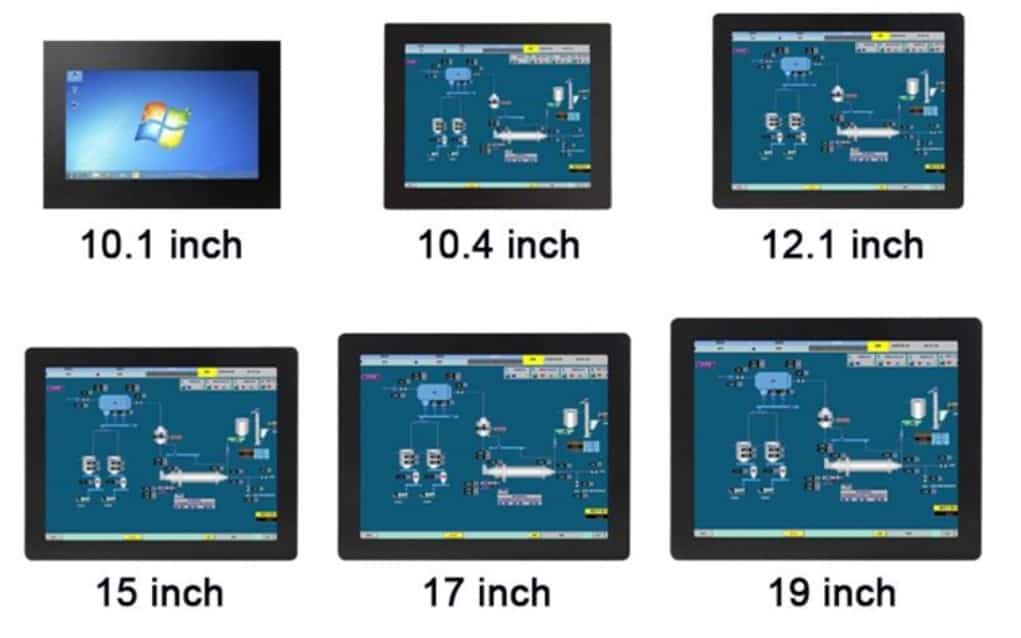

Aspect Ratio 4:3 square screen and 16:9 widescreen is optional.
Customized function like keyboard,scanners and card reader can be added additional to meet the increasingly diverse needs of various industries.
Application
1 Die casting front and rear components
2 All aluminum body
3 Plus anti-vibration/anti-interference design
4 More stable quality
5 Customized multi-function and interface industry control motherboard

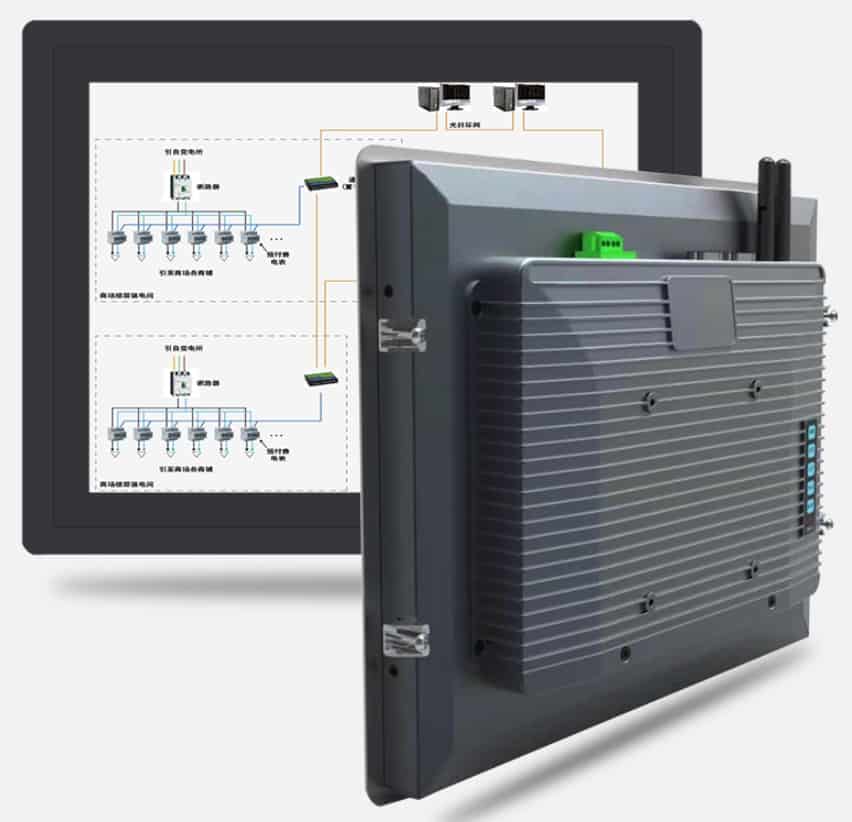

The industry use open frame design touch PC,which we researched and designed has professional modular structure,powerful function scalability and user-friendly design.
The regular industry use port is RS232, RS485 and other serial port, for these ports,all already been included in our industry use panel PC.
Technical Details
Product Parameter | ||
Motherboard | CPU | 3558U |
WiFi,3/4G module | 802.11b/g/n（optional）,Support 3g/4g （optional） | |
HDMI | 1*HDMI output | |
USB | 4*USB 3.0 | |
Network | 2*RJ45 with 1000 Base-T | |
COM | Support COM1 and COM2 can be adjusted to RS485, can add 2 or 4 RS232 | |
Power supply | 1*DC lock phoenix terminal，Support 9-36V | |
Audio output | 1*3.5mmTRS port | |
Other | 8*GPIO (optional) | |
Screen type | LCD screen with LED backlight | |
Resolution | 1024*768（display area:245.76 × 184.32 mm (H×V)m) | |
Contrast ratio | 700:01:00 | |
Brightness | 200cdm2 | |
Screen Ratio | 4:3 | |
Material of front and back cover | Aluminum | |
Craft | Glass frame paste, aluminum die casting | |
Heat dissipasion | Fanless aluminum fin heat dissipation | |
Color | Black,grey | |
Panel indicator light | Power state, hard disk state | |
Whole size | 315*245*56.8mm | |
Touch Type | Projected capacitive touch screen | |
Touch point | 10 point touch | |
Physical Resolution | 4096×4096 | |
Response time | ＜5ms | |
Accuracy | ＜2.5mm | |
Transparency | ≥90% | |
Protection | The surface is coated with 1:1 PVC protective film | |
Working environment | 20℃～ 70℃；Humidity：10%～ 90% | |
Storage environment | Temperature：-40℃～80℃ ； Humidity：10%～90% | |
Installation ways | Embedded panel type、VESA100*100mm | |
Power consumption | 24W | |
Weight | Net Weight：2.5KG | |
Accessories | Manual | User Manual,certificate of qualification,warranty card |
Bracket | wall mounted bracket,embedded bracket,desktop bracket(optional) | |
Adapter | AC&DC Power adapter | |
