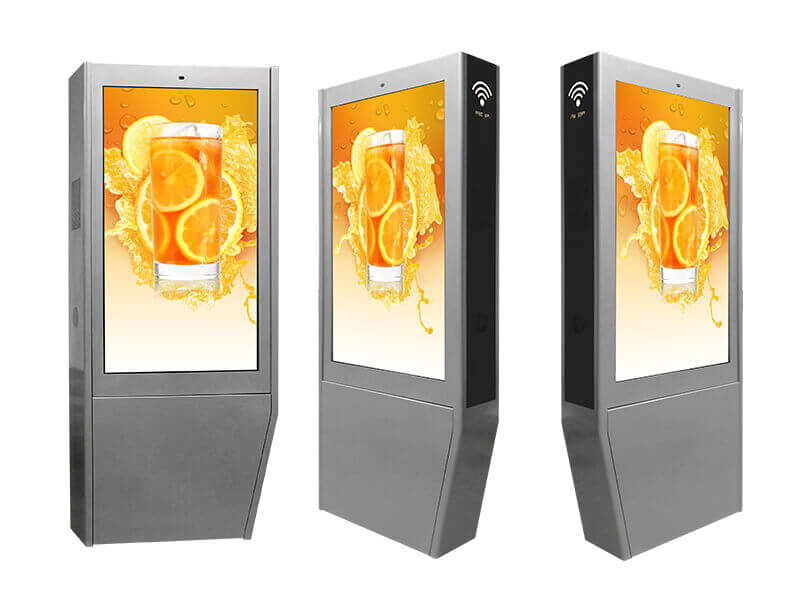

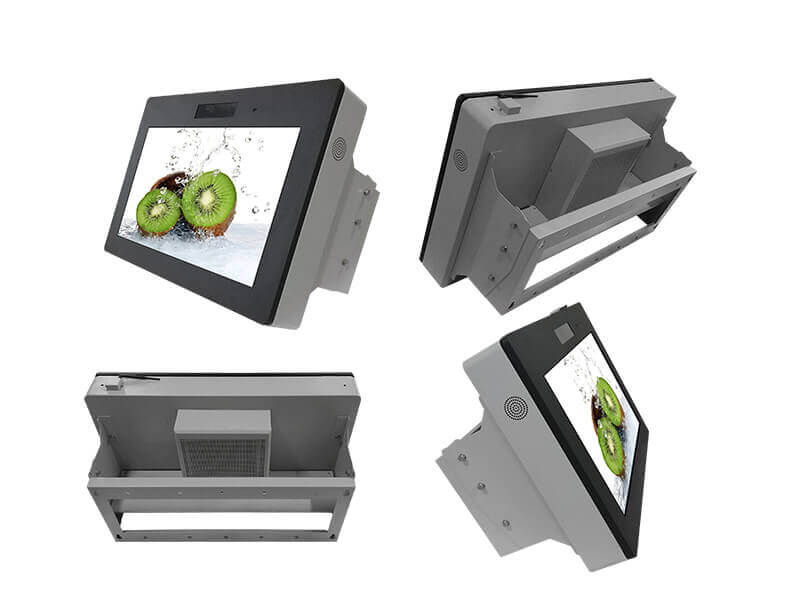

Outdoor LCD TV Display with Android and advertising software

IP55/IP65 protection for outdoor use

Automatic temperature control

Support front maintenance

Ultra thin design-10cm only

High brightness of 3000-5000nit

Support landscape and portrait screen mode

Technical Details

55 inch outdoor sunlight readable advertising tv lcd panel monitor touch screen digital signage kiosk outdoor totem lcd display
	Product Model	DYASUO-55OT
High-brightness Display Screen	Screen size	32″ / 43″ /49″ / 55″ / 65″ / 75″ / 86″
	Resolving power	1920X1080
	brightness	1500-2500 nit
	Display size	–
	viewing angle	178 degree horizontal/178 degree vertical
	Brightness control	Automatic Sensitization
Whole machine parameters	Reference Size of Vertical Screen (High x Width x Thickness)	–
		mm
	Power Supply	AC 208-240V/
	Power Supply	50Hz
	Heat Dissipation System	Intelligent Industrial Air Conditioning
	Power	≤160W , ≤280W , ≤380W, ≤400W ,≤500W, ≤800W, ≤1200W
	working temperature	-20°C / 45°C , -40°C / 55°C
	Working humidity	5%-90%RH
	Waterproof grade	IP55 , IP65
	Weight (air-cooled)	90-350Kg
	Anti-corrosion Technology of Shell	Use galvanized sheet + special outdoor powder for surface spraying (outdoor corrosion protection for more than 7 years).
Optional configuration	A main board	Computer motherboard, Android motherboard
	network transmission	stand-alone,WIFI,3G,4G
	touch	10-point capacitive touch, 10-point nano-touch, capacitive screen
The above are the reference parameters of the standard section.

Outdoor LCD Screen Designs

Original high brightness LCD panel, after treated with DYASUO patented technique, the panel brightness can equal to 7500 nits to 10000 nits in strong direct sunlight.
Outdoor LCD video wall with patent technic, it can show clear picture in summer direct sunlight, with less energy consumption.
1920×1080 / UHD 4K 3840×2160 resolution, 3000-4000:1 contrast, LED backlight, Sunlight viewable
Special designed LED backlight modular + constant current source drive components

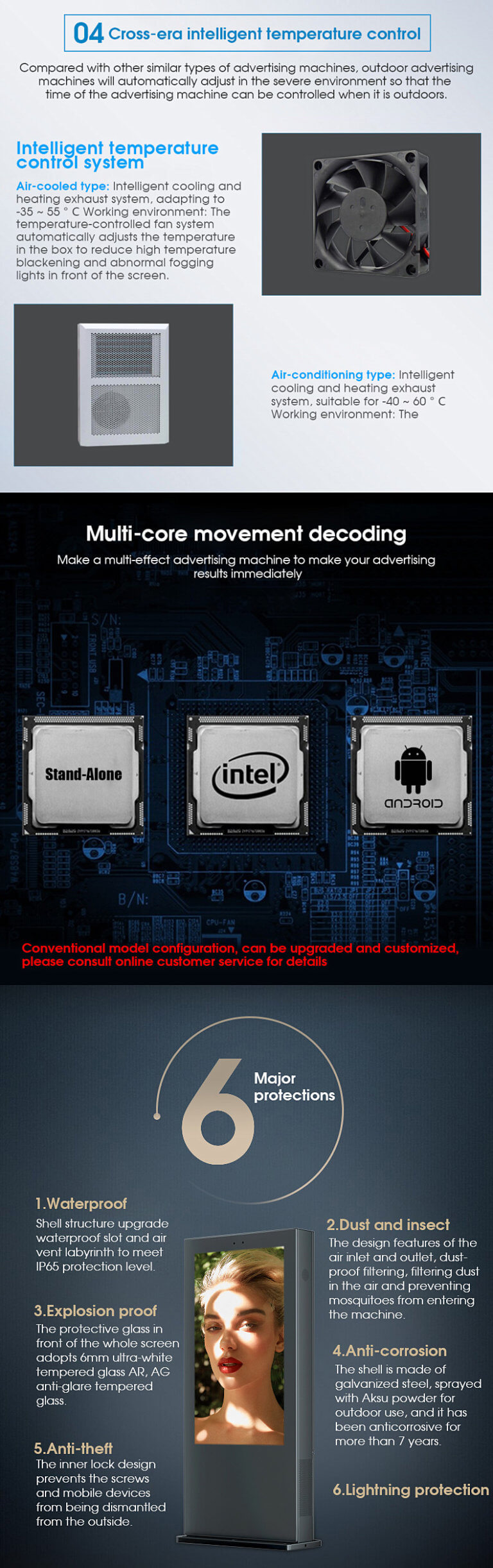

Special designed cooling system with high-quality air-conditioner built-in.
IP65 grade all weatherproof dustproof enclosure, +6mm vandal-proof protective and glazed glass made in Germany
Support HDMI VGA USB input, Android OS 5.1+, Windows OS 7/8/10, RS232 board optional
Adapt Germany paint powder, 5-7 years without color fading, acid and alkali, professional anti-corrosion more than 8 years.
Power, A/C 100-240V, 50/60H

Outdoor digital signage video wall adapt 100% full new brand industry grade A+ LG, Samsung LCD panel, widely used for outside shopping mall, street, bus station, gas station, outdoor advertising area, high way rest station and more publics. It integrated with auto cooling function when outside temperature raising, also heating module provide heating when start in frozen condition.
